🔍 [Fix] TortoiseGit Icon Overlays Not Showing? One Half-Width Space Beats OneDrive!

| Application program | 25 Reads

Copyright Notice: This article is an original work licensed under the CC 4.0 BY-NC-ND license. If you wish to repost this article, please include the original source link and this copyright notice.
Source link: https://v2know.com/article/1154

Have you ever installed TortoiseGit, set up your repositories correctly, and yet...
no overlay icons appear on your files or folders?

No green checkmarks, no red exclamations, no modified icons — nothing.
Don't worry, you're not hallucinating. You're just a victim of one of Windows’ strangest limitations.

Let’s expose the real reason and show you how to fix it with just a single half-width space.

🧠 The Root Cause: Windows Icon Overlay Limit

Windows has a hardcoded legacy limit:

  • Only 15 overlay icon slots are supported

  • Of those, only 11 are actually used

  • Priority is determined by the name of the registry key (sorted alphabetically) — not install order

Now here’s the kicker: popular apps like OneDrive, Google Drive, Dropbox, Box, and even TortoiseGit all compete for these slots.

If OneDrive or Dropbox grabs those early slots, TortoiseGit’s icons won’t appear at all.

⚔️ The Fix: Add Half-Width Spaces to Registry Keys

To push TortoiseGit’s overlays to the top of the list, all we have to do is rename its registry keys — just add leading half-width spaces to the key names. That’s it!

✅ Step-by-step instructions:

  1. Open the Registry Editor

    • Press Win + R, type regedit, press Enter

  2. Navigate to:

    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\ShellIconOverlayIdentifiers

  3. Look for all the keys starting with Tortoise:

    TortoiseNormal
TortoiseModified
TortoiseConflict
TortoiseAdded
...

  4. Right-click and rename each one, adding one or more half-width spaces at the beginning:

    For example:

    ␣␣TortoiseNormal
␣␣TortoiseModified
␣␣TortoiseConflict

    Windows sorts alphabetically, and spaces come before letters — so these renamed keys get prioritized.

  5. Restart File Explorer or reboot your PC:

    Use this command in Command Prompt to restart Explorer:

    taskkill /f /im explorer.exe
start explorer.exe

  6. Done! Your TortoiseGit icons should now show up as expected.

🕵️ Fun Fact: OneDrive & Google Drive Are Already Doing This

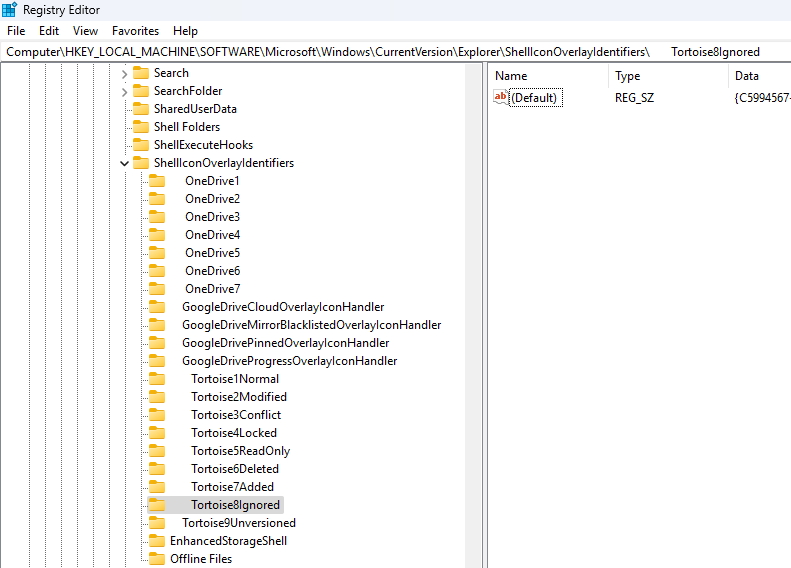

If you peek into the same registry path, you’ll probably see keys like:

 OneDrive1
 GoogleDrive1

Yes — they’re already adding spaces to their registry keys to get ahead of the competition.
Time to fight fire with fire. 🔥

✅ Summary

Problem Solution
TortoiseGit icons not showing Windows overlay limit exceeded
Cause OneDrive/Dropbox overlays have higher priority
Fix Add half-width spaces to registry key names

💡 Pro Tips

  • You can also delete overlay keys for apps you don’t use (like Dropbox or Box) to free up slots

  • Don’t use full-width (double-byte) spaces — only half-width (normal) spaces work

  • No need to reinstall TortoiseGit or Git

🧙 Final Words

So there you have it: the secret Windows limitation, the silent sabotage by cloud apps, and a low-tech hack that brings your Git overlays back to life.

Sometimes, all it takes is one little space to put your icons back where they belong. 😎
